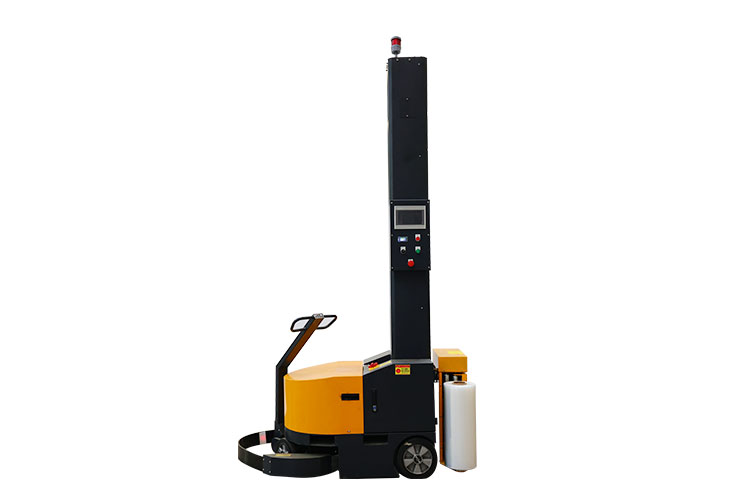

Robotic stretch wrapping machine

Robotic stretch wrapping machine

Robotic stretch wrapping machine is designed for wrapping and fixing the cargo pallet, the product is suitable for cargo transportation and mechanized loading and unloading packaging requirements, which can save the assembly cost, improve the production efficiency, and prevent the damage of the goods during the manual process
products

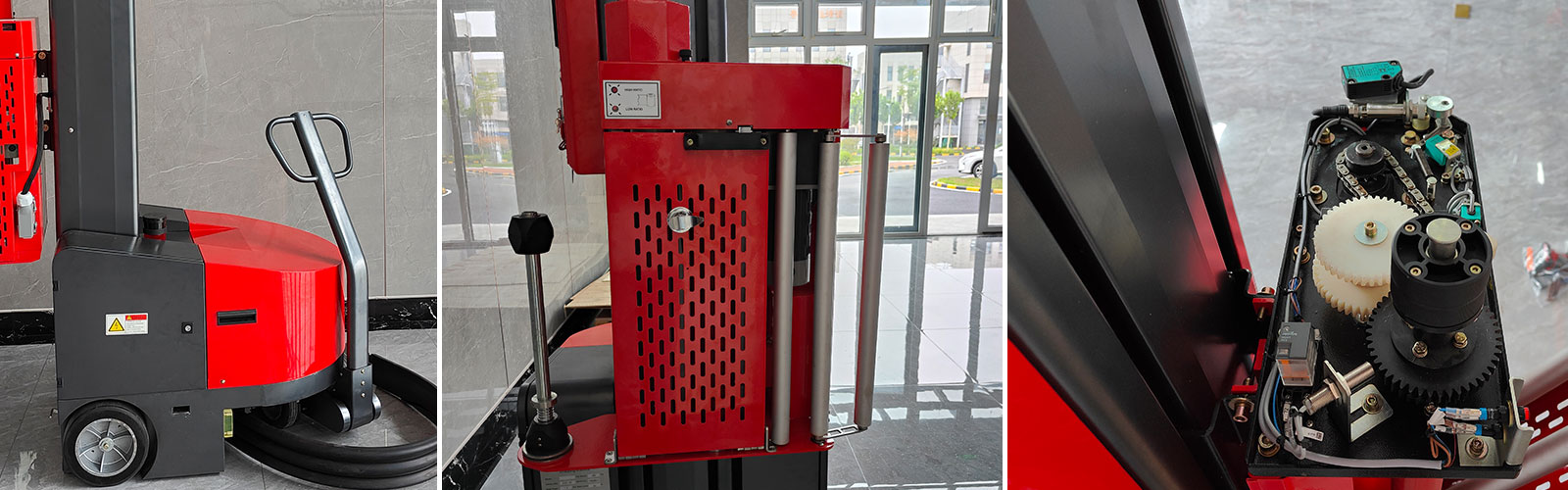

details


One charge can pack 200 goods
Directional rudder is easy to move in use environment
Drawing film is of mechanical stretch ratio can reach 1:2.5 ~3
Composite ergonomic operation button, more convenient to use
Automatic walking pre-stretch winding operation, can work for 8 hours
System is stable and reliable, and the equipment is easy to use and maintain
 Can automatically detect the height of the outer package and the number of equipment packages
PLC system to control the movement of mechanical transmission mechanism and realize stepless adjustment
Can be preset for different packaging methods to meet different packaging requirements of different packaging types

Model Parameters
Power supply
230v 50Hz 1phase
Min pallet dimensions
600*600mm
Max pallet dimensions
no limit
Min pallet weight
100kg
Standard pallet height
2100mm
Machine speed
60M/minute
Standard Pre-Stretch
250~300%
Film thickness
17-23mic
Film width
50cm
Charging time
12 hours
Working time
8 hours
Battery Capacity working time
10 hours
Battery
100AH(12V) x 2pcs lead-acid
Machine weight
325kg
