Wrapping and strapping machine

Wrapping and strapping machine

Wrapping and strapping machine is a comprehensive system which integrates the top sword-piercing strapping machine and automatic wrapping machine. The integrated strapping and winding machine enables the winding and strapping to be carried out together.Includes a 90º swivel system to strap in 1 or 2 directions for better load fastening.Our automatic vertical pallet strapping machine lets you strap different pallet sizes on 2 or 4 sides of the load. It may optionally include a cardboard corner protector applicator for protection of the wrapped product. Contact Dyehome for details and price
Get a Quote

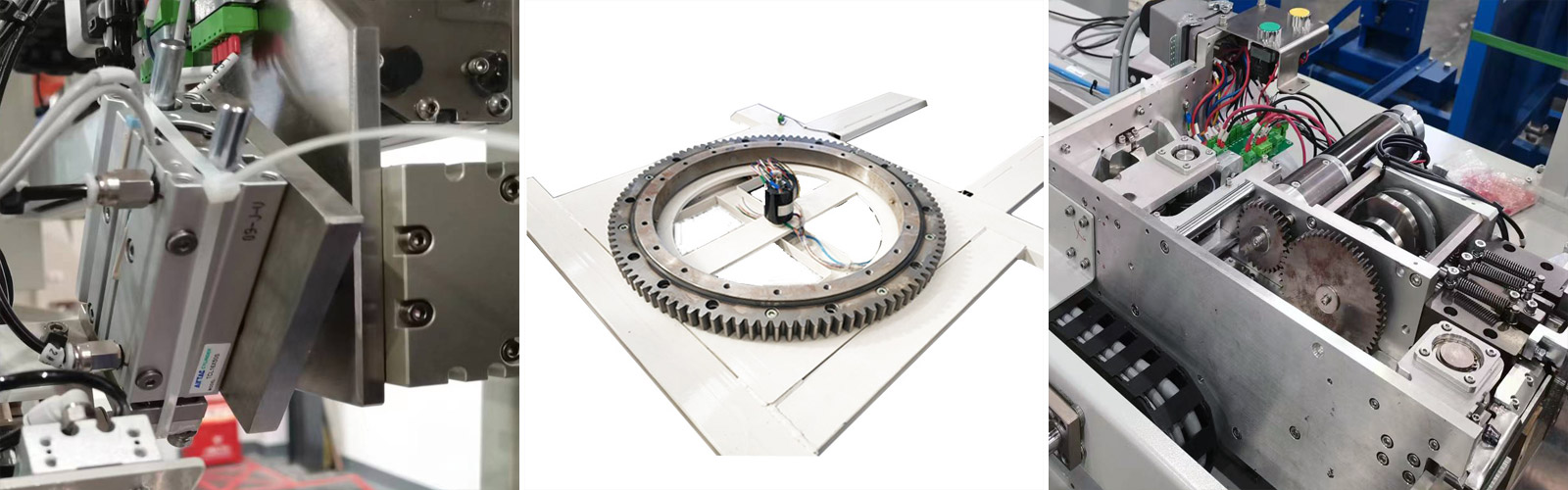

Product details

Man-machine interface graphic design, simple and intuitive, easy to operate
Tension can be customized and the winding can be adjusted to meet various packaging requirements
Simple troubleshooting guide, efficient troubleshooting, quick recovery of production

Characteristics(Customizable)
Dimensions 3000*4750*3500mm
Power 5000W Film Output Speed 3m/s
Power Supply 3-phase 5-wire AC 380V/50Hz Strapping Spacing Customizable
Machine Gross Weight 2100KG Threading Height According to production line / turntable height
Suitable Maximum Pallet Size L1200 * W1200 * H120mm Turntable Height 80mm
Effective Packaging Height 800-2500mm Film Cutting Method Blade
Strapping Force 20-250KG(200-2500N) Stretch Thickness: 15–25 μm
Strap Material PET Film Specification Outer diameter: 250 mm
Strap Specification Width: 16 mm Width: 500 mm
Thickness: 0.7–0.9 mm Core: ∮76.2 mm
Core: 406 mm paper core, 20 kg/roll Turntable Diameter 1800mm
Turntable Load Capacity 2000KG
Film Carriage Type Pre-stretch film carriage, stretch ratio 250% Lifting Method Rack and pinion
Packaging Speed 15-25pallets/hour Pallet Hole / Key Slot Space Requirement Width: 120 mm, Height: 80 mm
