Automatic Rotary Arm Film Wrapping Pallet Packing Machine

Automatic Rotary Arm Film Wrapping Pallet Packing Machine

The high-speed rotary arm wrapper is an advanced automated packaging solution for efficient production lines, ideal for diverse pallet wrapping applications.
Get a Quote
products

details

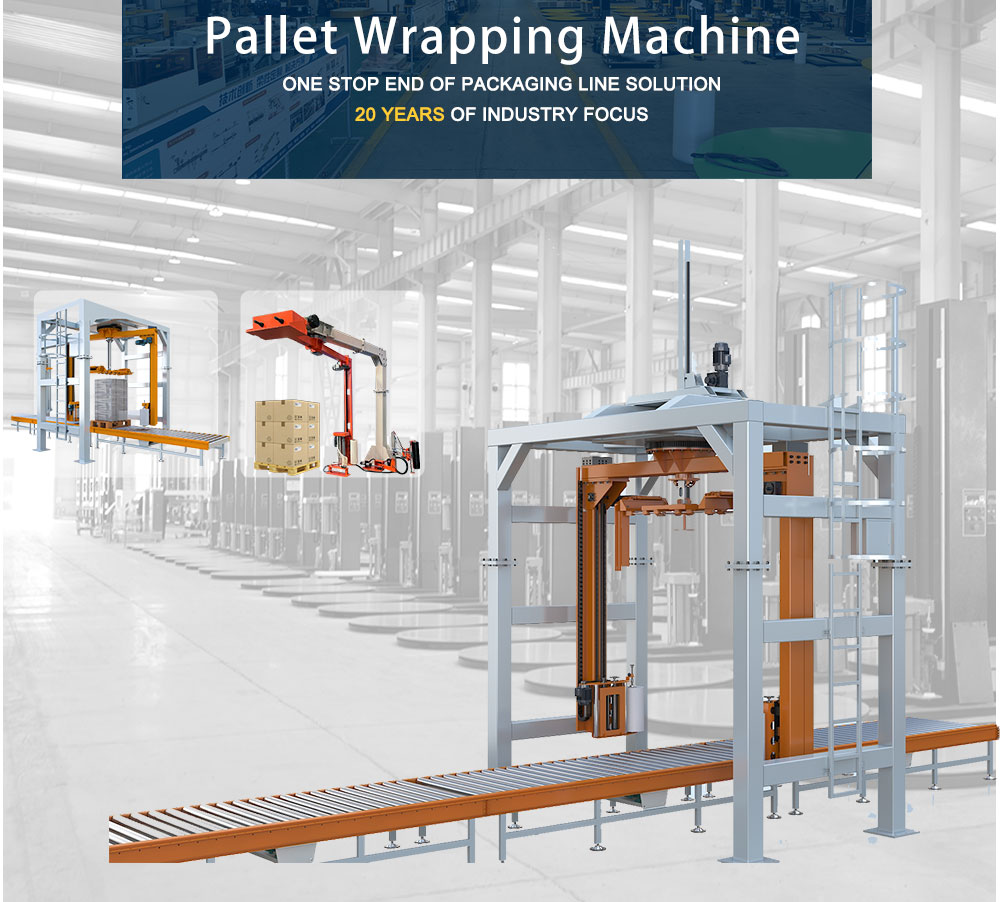

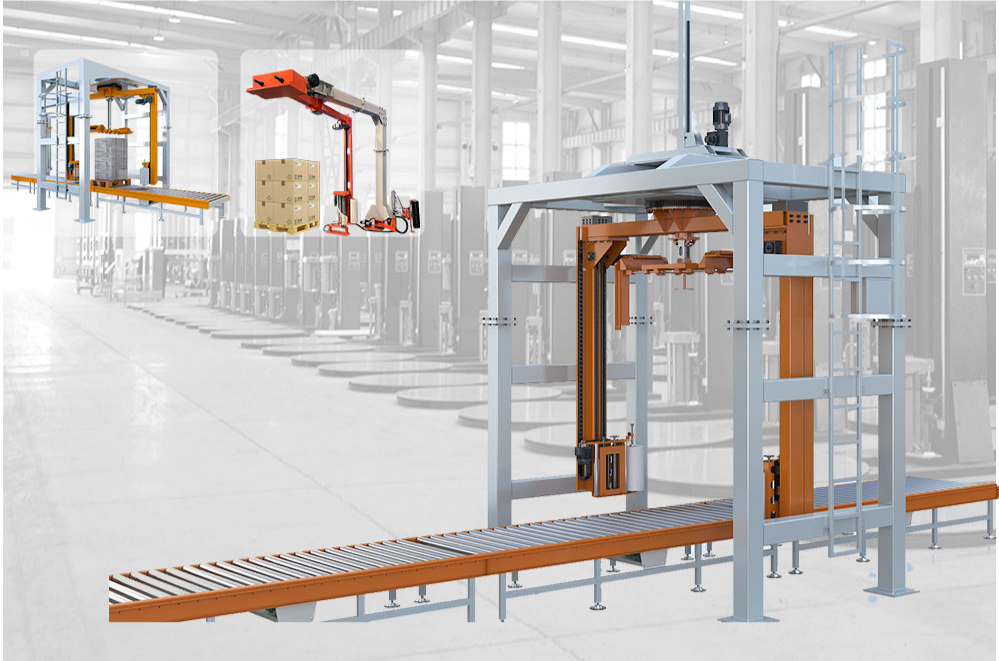

The high-speed rotary arm wrapping machine is an efficient and intelligent automated packaging equipment designed for modern production lines. It is suitable for the wrapping and packaging of various palletized goods. The device adopts a rotary arm structure, enabling a packaging mode where the goods remain stationary while the equipment rotates around them. It is particularly well-suited for the wrapping needs of lighter but taller unstable goods or heavy-duty cargo.
Equipment Name
 Rotary Arm Wrapping Machine
Model
 LR1800FZ
Wrapping Dimensions
 (800-1100)mm*(800-1200)mm
Wrapping Height
 800-2000mm
Efficiency
 20-40 pallets/hour
Arm Speed
 6-18rpm (variable frequency control)
Arm System
 Auto-reset arm, high-sensitivity emergency brake
Film Frame System
 Pre-stretch frame (up to 250%), auto film feed with adjustable speed
Auto Film Cut
 Automatic clamping & cutting for unmanned operation
Lifting Column
 Chain structure with variable speed
Conveyor System
 Height: 500mm, Speed: 12m/min, Capacity: 2000kg
Control System
 PLC control, adjustable wrapping layers & cycles, auto height detection
Safety Features
 Flashing warning lights, safety nets, photoelectric protection
Power/Voltage
 3.2kw/380v
Net Weight
 2500kg
Dimensions

4300mm*2320mm*3530mm(excl. conveyor)

Air Consumption
 1000ml/min
Air Pressure
 0.4-0.6MPa
