Automatic arm wrapping machine with top sheet

Automatic arm wrapping machine with top sheet

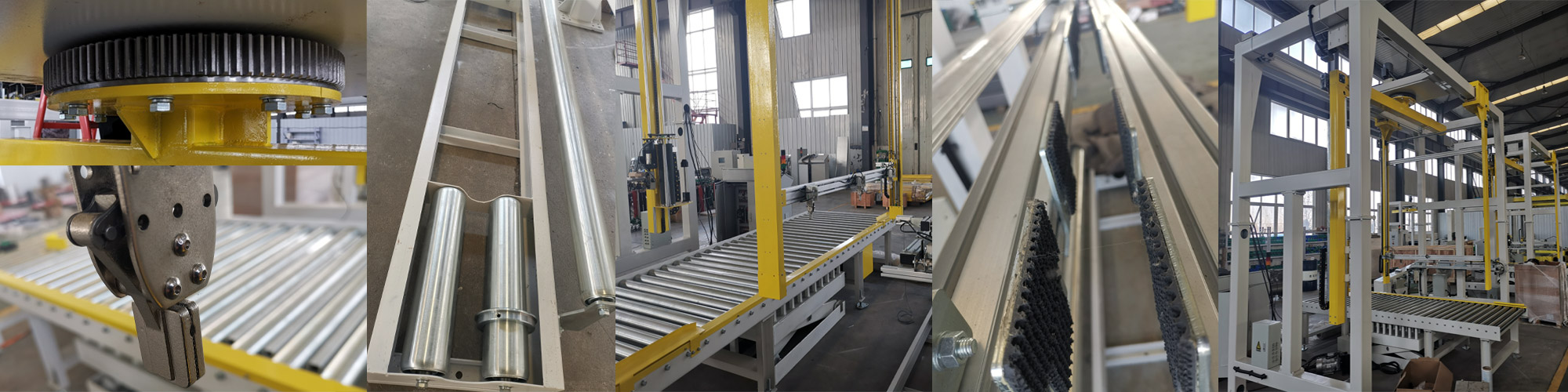

Automatic arm wrapping machine with top sheet.Used for winding large weight and bulk goods,circumferential fit top wrap wrap goods on five sides.Rotary arm driven by 011.30.500 slewing bearing, featuring high load capacity and maintenance-free operation,gear transmission ensures precise positioning.Wrapping efficiency 15-20 pallets/hour.Top Cover Film System made of high-quality steel plate with powder coating.Pneumatic film pulling system ensures firm gripping.Rodless cylinder for film cutting, ensuring clean cutting edge.Film break detection function. Automatic height detection for precise film placement. Contact Dyehome for details and price
Get a Quote
Product details



  • Automatic operation process
  • Suitable for production line enterprises
  • The control system is humanized
  • Operation parameters can be set
  • The clamping film system is stable
  • The success rate of coating 100%


Model Parameters
Turntable Speed 0-18RPM(Adjustable)
 Maximum wrapping speed 10-30 loads/hour
Maximum pallet size 1.1*1.2 m
Maximum Wrapping Height 2000mm
Max Load Weight 2000KG
Power Supply 380V 50HZ
Power 7.5KW
Machine Size L4300xW2320xH3530mm
Machine Weight 2200Kg
Standard Pre-Stretch 250-300%
Standard Film Width 500mm
Air 1000ml/min
Pressure 0.4-0.6MPa
