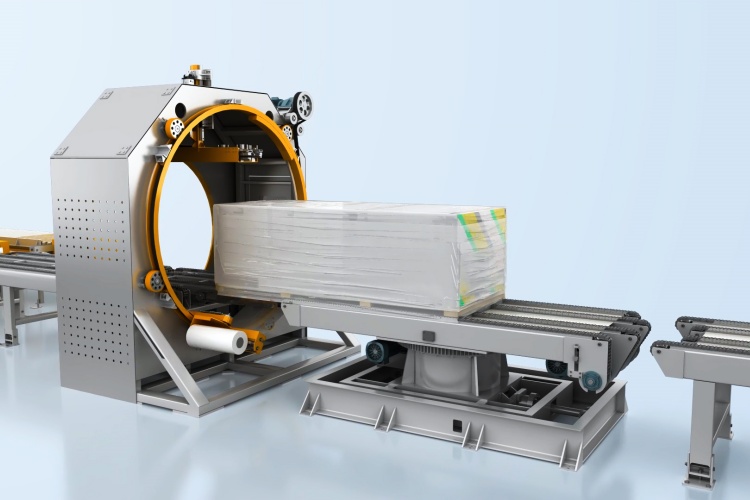

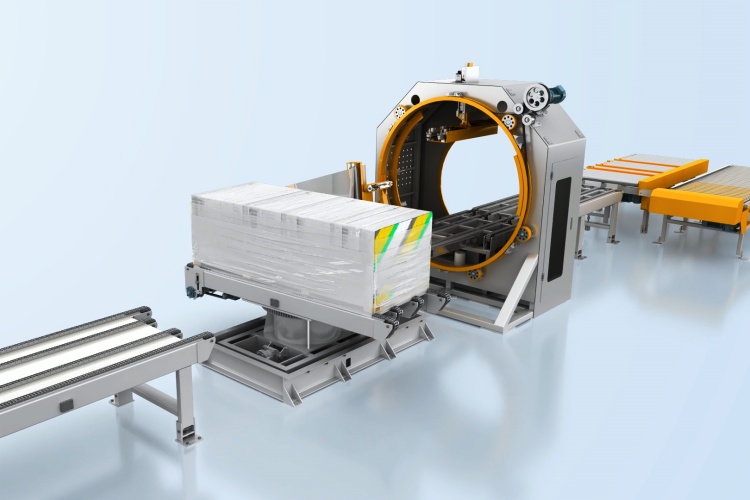

Fully Automatic Horizontal Wrapping Machine

Fully Automatic Horizontal Wrapping Machine

Our Horizontal Wrapping Machine is a kind of six-sided packing and conveying system. Axial and circumferential wrap, all packing processes can be completed automatically, packaged goods are moisture-proof, dust-proof, tightly bound and fast transshipment.
Get a Quote
products

details






Product Features:

  • All packing processes can be completed automatically
  • Axial and circumferential wrap
  • PLC and touch screen control, winding parameters can be set
  • With switch protection device and emergency stop switch device
  • Remote control switch for remote control, convenient operation
  • Photoelectric switch, self-dynamic measurement of cargo information
  • Reinforce the winding function to provide special protection for certain parts
  • Packaged goods are moisture-proof, dust-proof, tightly bound and fast transshipment

Dyehome Intelligent Fully Automatic Horizontal Wrapper is a state-of-the-art tool that will revolutionize packaging processes with its exceptional accuracy, robustness, and effectiveness. This adaptable orbital wrapper is developed for horizontal stretch film applications and can handle a variety of materials, such as panels, wood, and man-made boards. Delivering consistently high-quality, secure packaging. This horizontal wrapper is perfect for cabinet and furniture builders that need reliable, superior packing because it is made to withstand harsh conditions.

Automatic Horizontal Wrapping Machine designed to be user-friendly in order to reduce operator training and downtime, making your operation simpler. It also readily adjusts to various product sizes and forms. Its sophisticated stretch film coating lowers danger during storage and transportation by offering strong protection against moisture and dust.

To preserve your goods, streamline your packaging process, and make a good first impression on customers, go with the Dyehome Intelligent orbital wrapping machine.


Item Parameter
Goods size L2400*W1200*H950mm/ Customizable
Max load weight 2000/2500/3000/3500/4000Kg/ Customizable
Ring rotation speed 35rpm/ frequency control
Film breaking device Pneumatic/electric control, electric heating wire/cutter film;
Carriage type Mechanical/DC/AC
Film tensioning Adjustable by touch screen
Film pre-stretch 150-250%
Regulator Damping adjustment, stepless speed regulation
Ring diameter 2000/2200mm/ Customizable
Power supply 380V/3P±10% PE/50 or 60Hz
Installed power 30Kw/ Customizable
Reel film size 500*260mm
Weight of film reel 15/20/25Kg
Film thickness 17~35um
Mode of driving Roller/chain/belt/chain plate
