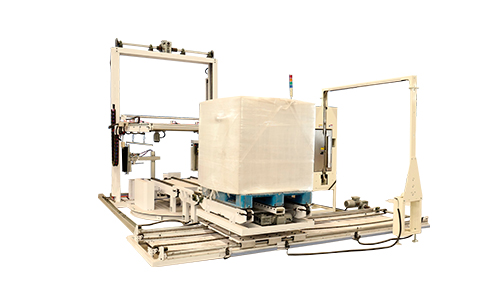

The automatic film wrapping and strapping machine for pallets is an intelligent packaging equipment that integrates pallet wrapping packaging and automatic strapping functions, designed to improve shipping efficiency and packaging consistency. The equipment automatically identifies the height of the pallet cargo, first wraps the entire pallet with multiple layers of wrapping film, and then uses the sword-piercing strapping mechanism to perform multiple horizontal or vertical strapping operations to achieve dual protection of stability and sealing. This model has high integration and fully automated operation. It is widely used in food and beverage, building materials, chemicals, logistics, e-commerce, home appliances and other fields. It is an indispensable key equipment in modern shipping and packaging lines.

The main parameters of the automatic film wrapping and strapping machine for pallets include applicable pallet wrapping specifications (500-1100) mm*(500-1200) mm, winding height up to 2400 mm, strapping tape width PP machine tape (13.5mm x0.85mm fully automatic PP strapping tape or PET strapping tape (12mmx0.6mm fully automatic PET strapping tape), supporting two parallel lanes/four cross lanes. The equipment is equipped with a high-speed pre-stretched film rack (stretching ratio 250% adjustable), a sword-piercing strapping system, an automatic tape feeding device and an intelligent control module, with one-button start, automatic counting, fault alarm, remote maintenance and other functions. The whole machine is controlled by a PLC+touch screen system, which can set the number of wrapping layers, wrapping mode, strapping position and quantity, and supports linkage operation with the conveyor line to achieve a truly "unmanned packaging operation".
You can leave a message in the comment area or send us a private message
We will provide you with customized services

This equipment is suitable for various industry scenarios with high requirements for transportation stability and packaging appearance, and is especially suitable for enterprises with more needs for batch delivery of standard pallet goods or warehousing and transshipment. Through wrapping The dual fixing method of film and strapping not only greatly improves the goods' ability to resist shock, scatter and moisture, but also effectively prevents the products from being scattered or damaged due to collisions during transportation. The equipment is suitable for a variety of packaging scenarios such as pallet stacking, boxed pallets, special-shaped pallets, heavy materials, etc. The vertical or horizontal strapping direction can be customized according to needs to meet personalized logistics needs.

Dahong Intelligent Equipment has accumulated a lot of practical experience in the research and development and application of automatic film wrapping and strapping machines for pallets. The product design focuses on compact structure, stable operation and system compatibility. All key components are international first-line brands to ensure long-term efficient operation and extremely low failure rate. Dahong can provide an integrated intelligent packaging system from front-end transportation, positioning, winding, strapping to back-end transportation and shipment, and supports remote diagnosis services to create a truly efficient, intelligent and safe modern packaging production line solution for customers.
