High box type carton sealer

High box type carton sealer

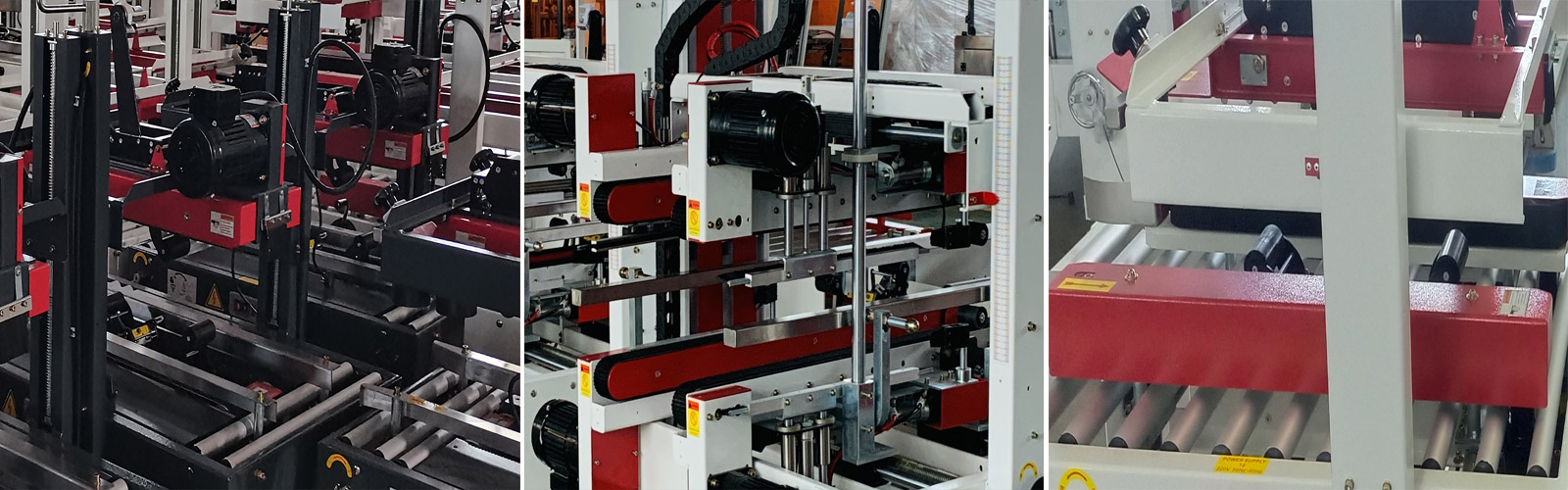

High box type carton sealer for the use of narrow and tall carton, change carton specifications need to manually adjust the width and height, upper and lower sides of the belt drive
video
products

details

Suitable for the use of narrow, high carton, standard equipment table height 600mm

Fold the cover manually and seal the box once horizontally

Adjust the width and height manually when changing the dimensions

Can be used alone or with the production line to use, but also can upgrade the automatic

Transmission mode adopts upper and lower sides belt drive

The structure of the tape device is precise and strong, the operation is smooth, and the service life is long

Related

parameters

Model
Parameters
Transport velocity
20m/min
Maximum carton size
L*W500*H500mm
Minimum carton size
L150*W120*H130mm
Power Supply
220V / 380V 50HZ
Power
0.2KW
Adhesive Tape Width
W48 or 60 or 75mm
Machine Size
L1000xW880xH1330mm
Machine Weight
120Kg
