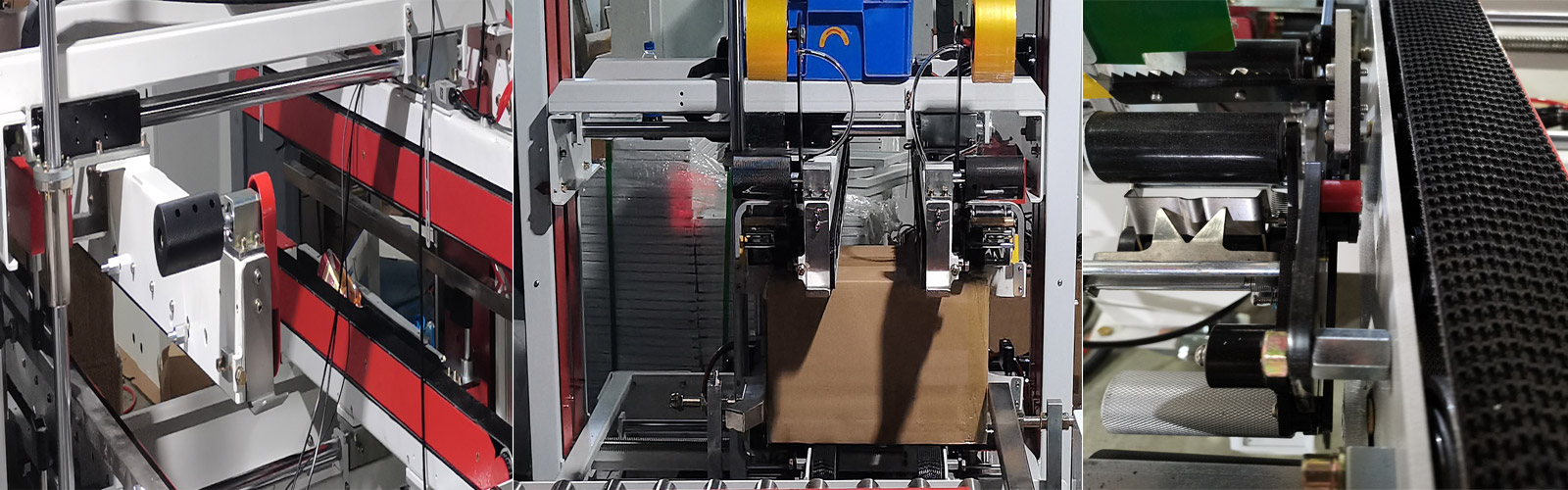

Linear semi-automatic corner carton sealer

Linear semi-automatic corner carton sealer

Streamline design, linear semi-automatic corner carton sealer, can be high fit and upgraded to fully automatic fit production line
video
products

details

This set is a foursquare one-unit series it can be combined with other machine shaped taping machine to operate

On-line process adopt L type forward push steering

This set is a foursquare one-unit series it can be combined with other machine shaped taping machine to operate

Machine parts are precise and durable, with long operating life

Within carton specification, normalize the same carton based on the same packing sheet, finish by manual adjustment for specification change

Ensure labor saving, carton stickers beautiful, fast, efficient

Related

parameters

Model
Parameters
Transport velocity
6-10 cases/min
Maximum carton size
L700*W500*H500mm
Minimum carton size
L340*W200*H180mm
Power Supply
220V / 380V 50HZ
Power
0.4KW
Atmospheric pressure
6kg/c
Air consumption
90nl/min
Adhesive Tape Width
W48 or 60 or 75mm
Machine Size
L1265xW1150xH1500mm
Machine Weight
350Kg
