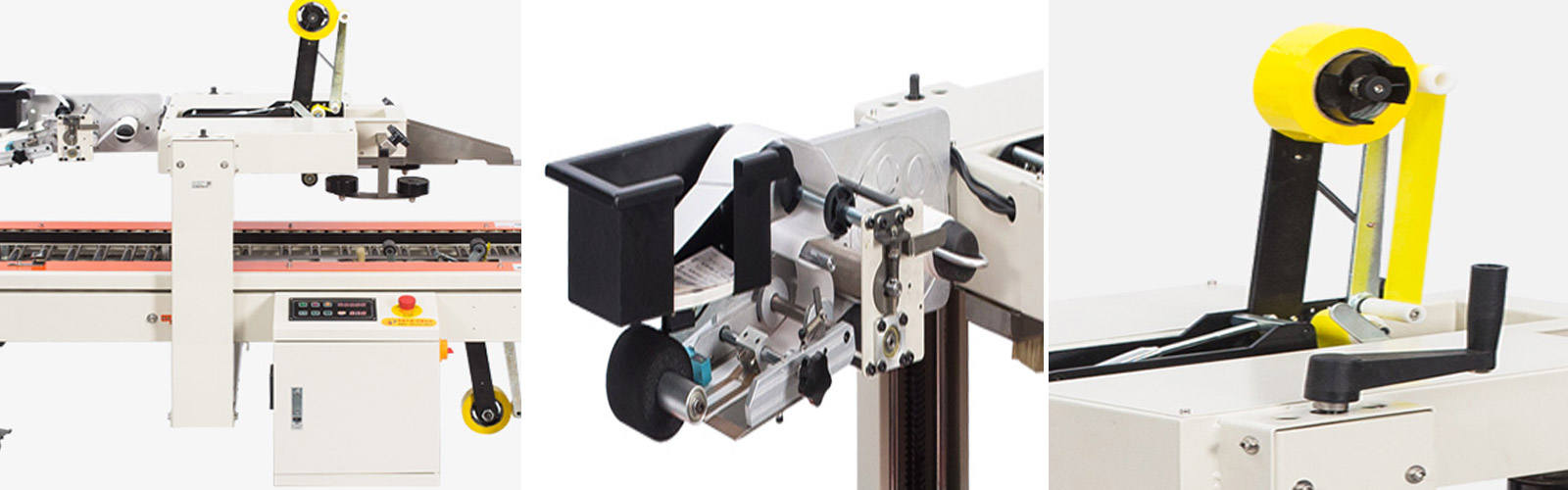

Labeling type automatic carton sealer

Labeling type automatic carton sealer

Labeling type automatic carton sealer Automatic labeling, automatic sealing integrated design, according to customer requirements can be customized equipment size and labeling style
video
products

details


Standard equipment table height 700mm, other sizes can be customized
Transmission mode adopts two sides belt drive,dual drive system strong long life

Adjust the width and height manually when changing specifications

Can be wired or used alone, automatic up and down labeling and horizontal sealing

Folding and sealing machine with automatic anti-disassembly label and automatic sealing

When facing cartons of different sizes, it is necessary to adjust the width and height manually to adapt


Related

parameters

Model
Parameters
Transport velocity
20m/min
Maximum carton size
L600*W500*H500mm
Minimum carton size
L200*W150*H120mm
Power Supply
220V / 380V 50HZ
Air consumption
 400NL/min
Atmospheric pressure
 6kg/c㎡
Power
0.4KW
Adhesive Tape Width
W 48 or 60 or 75 mm
Machine Size
L2400xW1050xH1710mm
Machine Weight
380Kg
