Reel wrapping machine

Reel wrapping machine

Reel wrapping machine is ideal for packaging paper rolls, woven fabrics, and more. It delivers cocoon-style wrapping to shield products from damage, moisture, and dust. Manufacturers, factories, and suppliers from China are welcome to send inquiries anytime.
Get a Quote
Product details

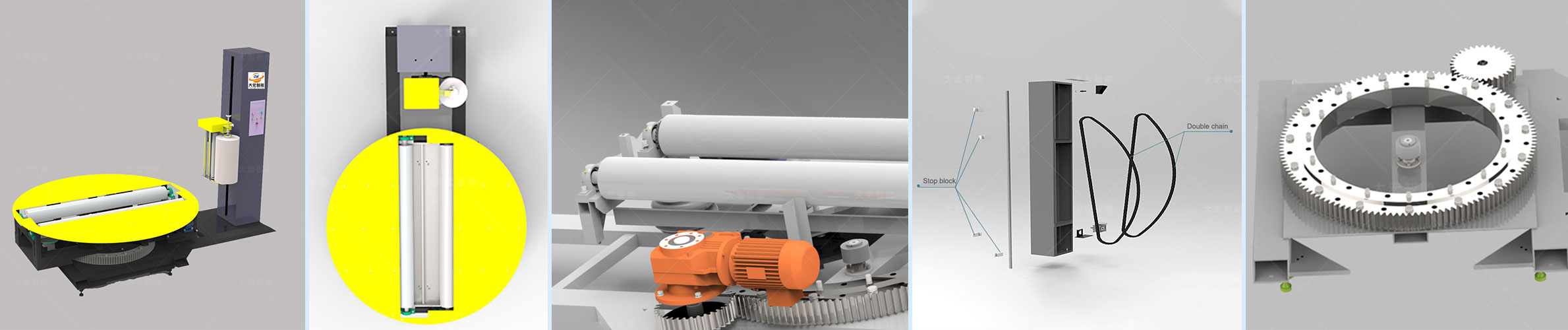

Packing machine adopts PLC automatic control, reliable performance, can be changed according to the need of winding mode and times; Rotary table automatic reset to ensure accurate positioning of goods in and out; The user can choose the tensile or pre-tensile film device; According to customer needs, matching optical electric control head, automatic height measurement; According to the need to design and manufacture supporting production lines.


Characteristics(Customizable)
Roll diameter(mm) 1200 Electrics 2.0kw/AC380V
Roll width(mm) 300-1800 Machine weight 1080kg
Turntable loading(kg) 2000,max Dia. of roller(mm) 150
Packing efficency 20-40 rolls/hour Roller center distance(mm)   420
Dia. of turntable(mm) 2000mm Machine diamension(mm) 3000*2000*2000
Turntable speed 0-12rpm Air consume 1000ml/min
Turntable height 460(general)520(auto ejection)
