Automatic carton sealer with high speed

Automatic carton sealer with high speed

Automatic carton sealer with high speed have 28m/min belt conveying speed, at the same time can accept a variety of specifications of carton use, automatic adjustment of the width and height of the equipment, according to the needs of size transformation
video
products

details

Can cooperate with other automatic type of opening machine, forming unmanned automatic opening and sealing box

Standard equipment conveyor table height 600mm, and can be customized equipment size

Automatically adjust the equipment corresponding to the height and width of the goods

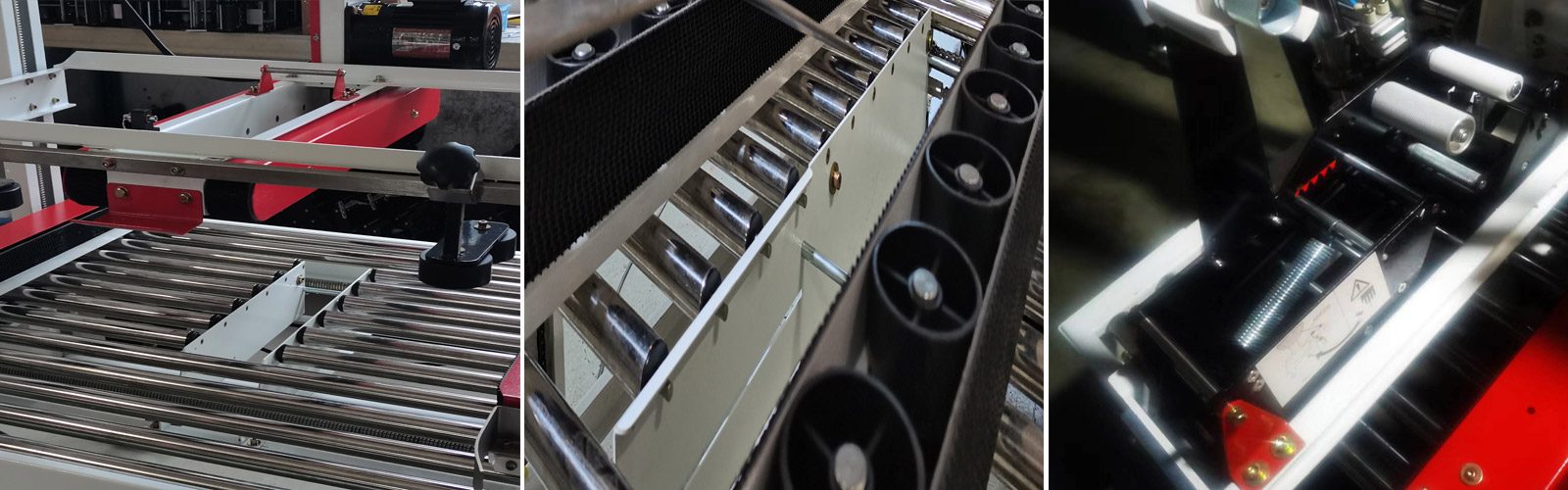

The structure of the tape device is precise and firm, the operation is smooth, and the working life is long

A variety of sizes can be used at the same time

Super power, super fast speed, the transmission mode is driven by upper and lower belt

Related

parameters

Model
Parameters
Transport velocity
28m/min
Maximum carton size
L*W500*H500mm
Minimum carton size
L200*W200*H130mm
Power Supply
220V / 380V 50HZ
Power
0.2KW
Atmospheric pressure
6kg/c
Air consumption
80nl/min
Adhesive Tape Width
W48 or 60 or 75mm
Machine Size
L1570xW960xH1540mm
Machine Weight
180Kg
