Automatic carton sealer

Automatic carton sealer

Automatic carton sealer can used alone, and also be used with other equipment and conveying line, conveying speed of 20 meters/min
video
products

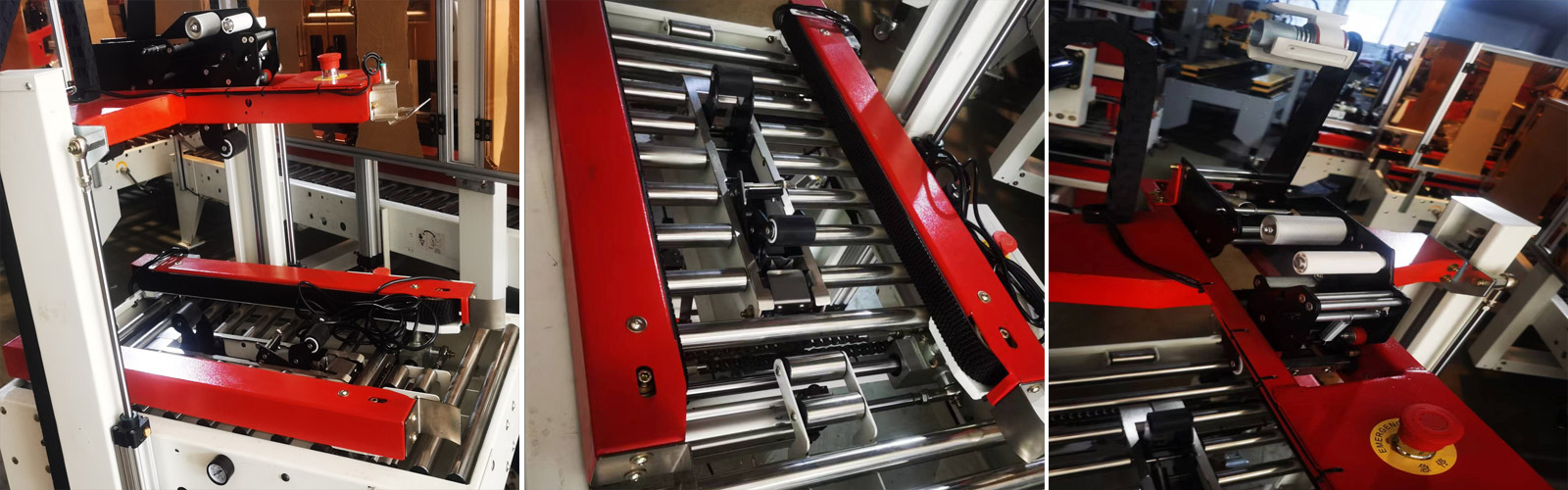

details

Smaller and more flexible, faster and more efficient

Cartons of different specifications can be used at the same time

The fuselage is thickened to make it stronger and more durable

The upper and lower horizontal sealing is completed at one time, with a high degree of automation

Stainless steel roller servo system, easy to wear, at the same time can be used according to customer needs power system

Control system is simple and easy to use, equipped with emergency switch, to deal with emergencies, high safety factor

Related

parameters

Model
Parameters
Transport velocity
20m/min
Maximum carton size
L*W500*H500mm
Minimum carton size
L150*W120*H130mm
Power Supply
220V / 380V 50HZ
Power
0.24KW
Atmospheric pressure
6kg/c
Air consumption
80nl/min
Adhesive Tape Width
W48 or 60 or 75mm
Machine Size
L1160xW975xH1330mm
Machine Weight
180Kg
