High speed case erector

High speed case erector

High speed case erector.Used with the production line or alone,It can basically realize the automatic operation with high working efficiency, up to 25 cases/min
video
products

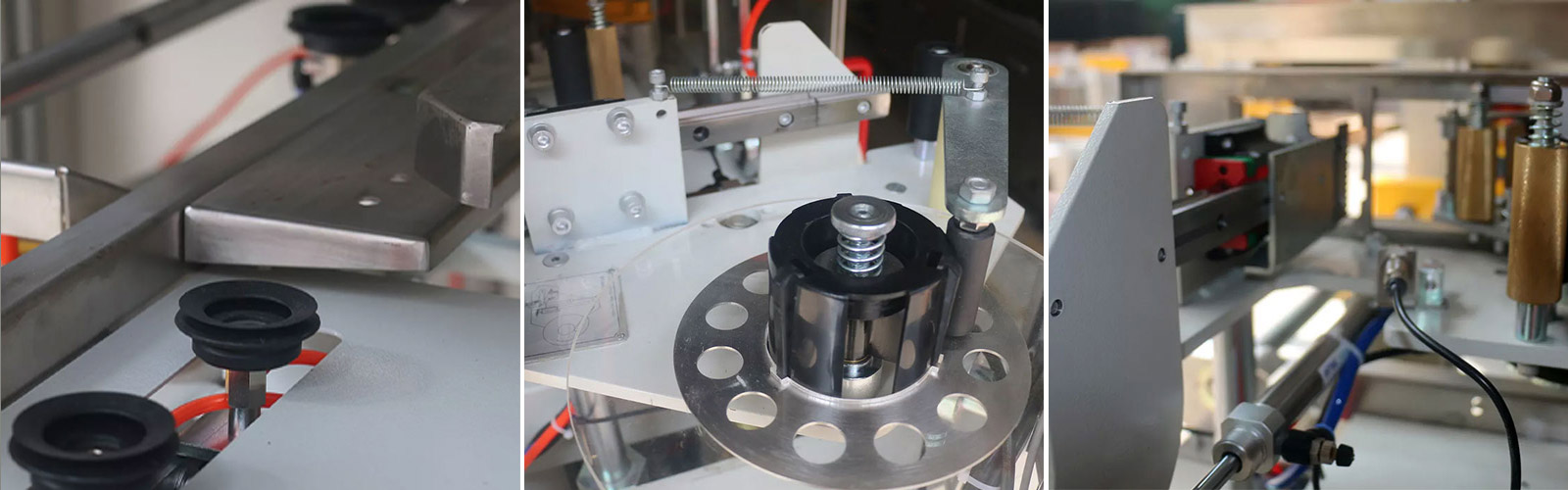

details


Adopt CAM type forming mechanism

Structure of the taper is precise and strong

Empty cartons can be replenished at any time

The standard type applies directly to post 6-12#

Forming speed depends on the size of the carton

With tape and carton lack of material alarm function

Height of the standard restoration screen is 1050mm

Suitable for pack same specification at the same time

Equipped with production line or single machine operation





Related

parameters

Model
Parameters
Carton Opening Speed
15-25 ctns/min
Carton Size Range
L130-260xW80-150xH90-180mm (130≤W/2+H≤255, L+W≤410)
Power Supply
380V 50HZ 3PH
Power
1.5KW
Adhesive Tape Width
W48mm
Air consumption
400NL/min
Atmospheric pressure
6kg/c
Machine Size
L1980xW1250xH1700mm
Machine Weight
800Kg
