Hot melt adhesive type case erector

Hot melt adhesive type case erector

Hot melt adhesive type case erector automatically complete the unpacking, forming, and so on, with hot sol sealing after transmission to the special equipment packing machine
video
products

details

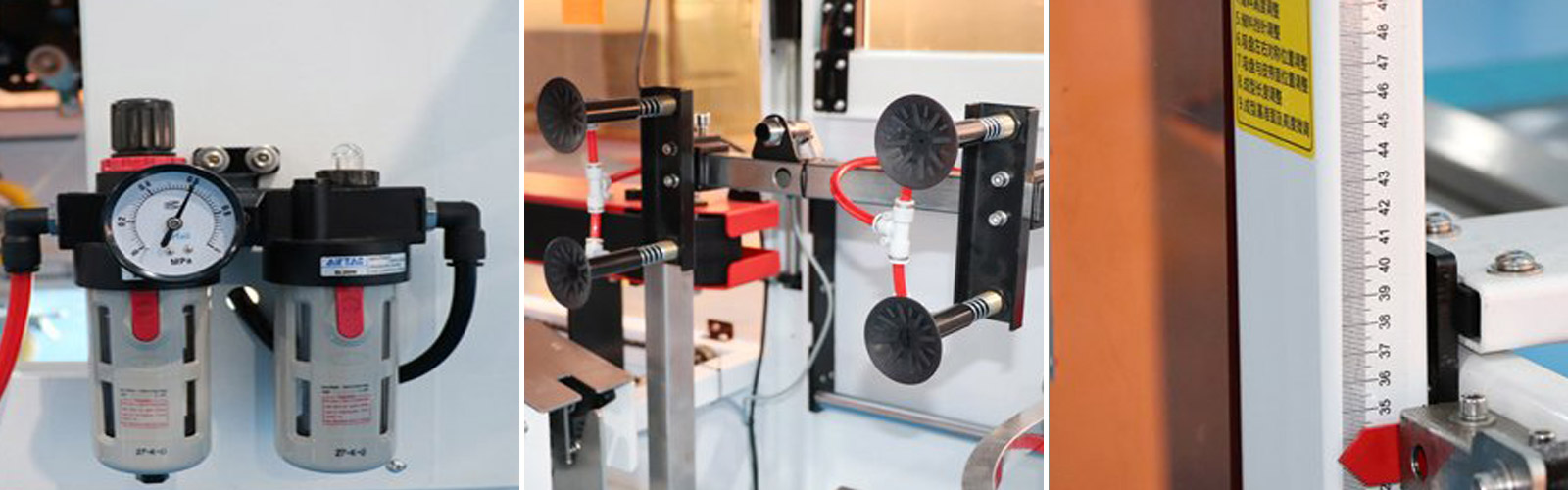

Adopt cylinder forming mechanism
Height of the standard machine is 650mm
Suitable for pack of the same specification
Nailing head structure is precise and strong
Empty cartons can be replenished at any time
Nails and carton lack of material alarm function
Equipped with production line or single machine operation
Forming speed depends on the size and the number of nails


Related

parameters

Model
Parameters
Carton Opening Speed
15-25 ctns/min
Carton Size Range
L130-260xW80-150xH90-180mm (130≤W/2+H≤255, L+W≤410)
Power Supply
380V 50HZ 3PH
Power
1.5KW
Adhesive Tape Width
W48mm
Air consumption
400NL/min
Atmospheric pressure
6kg/c
Machine Size
L1980xW1250xH1700mm
Machine Weight
800Kg
