Low speed automatic carton sealer

Low speed automatic carton sealer

Low speed automatic carton sealer can be used with different brands of balers. When changing specifications, it is necessary to manually adjust the width and height, and the speed of the belt is 20 meters/min
video
products

details

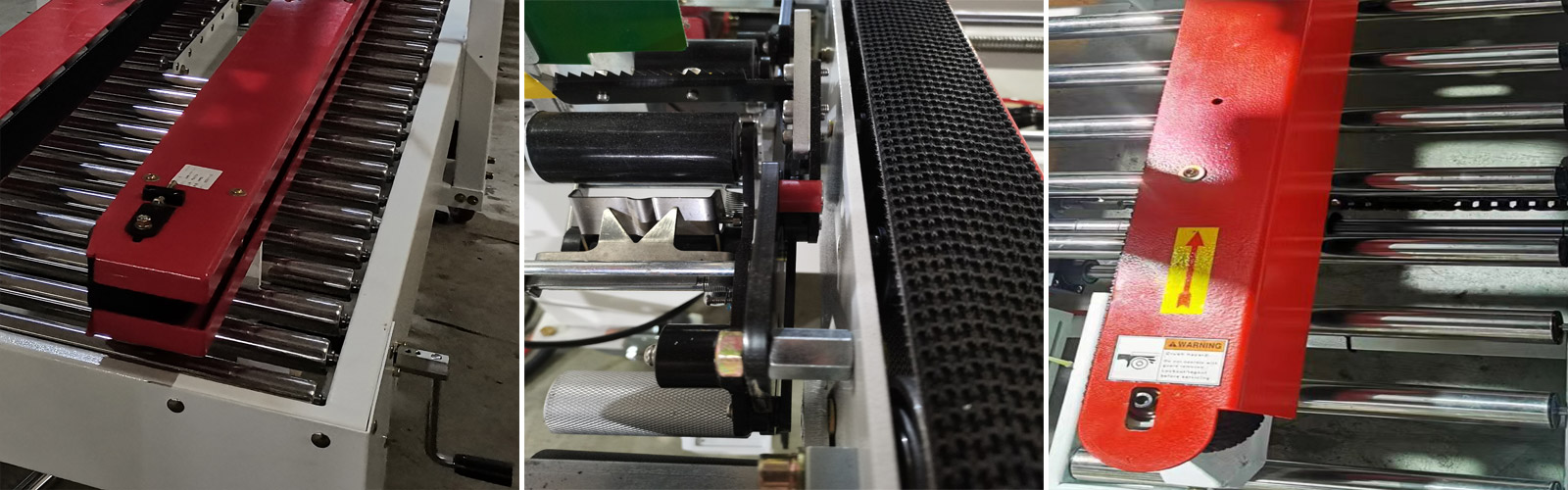

It can be used with automatic balers of different brands

Automatic folding cover, upper and lower horizontal sealing automatic completion

The width and height need to be adjusted manually when changing the specifications

The machine includes automatic positioning control system function

The transmission mode is extended belt drive on both sides

Standard machine conveyor height 450/750 mm, while accepting custom size

Related

parameters

Model
Parameters
Transport velocity
20m/min
Maximum carton size
L600*W500*H500mm
Minimum carton size
L250*W150*H120mm
Power Supply
220V / 380V 50HZ
Power
0.4KW
Atmospheric pressure
6kg/c
Air consumption
40nl/min
Adhesive Tape Width
W48 or 60 or 75mm
Machine Size
L2010xW940xH1900mm
Machine Weight
180Kg
